Blue Dragon - Class A Mosfet Booster

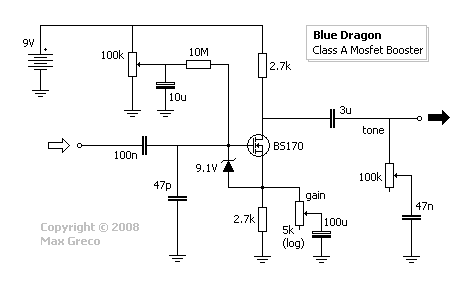

This is linear booster inpired by Jack Orman's Mosfet Booster. As far as know it also share some similarities with the Catalinbread Serrano Picoso.

I also added a standard tone control that allow the cut of the treble.

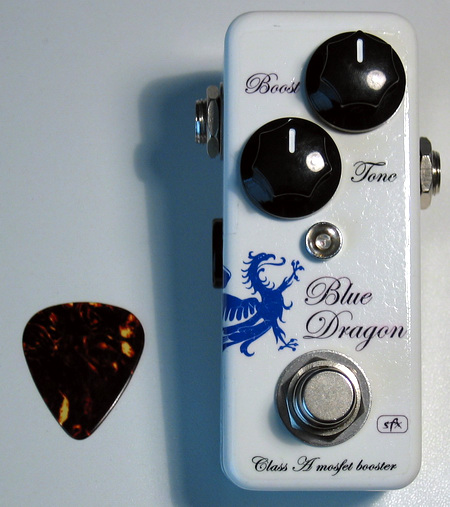

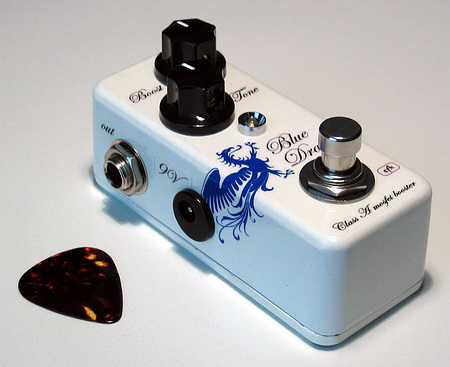

The difficult part of this pedal was to put the electronics in a Hammond 1590A box (93x39x31mm).

- Plasti-kote ..... Primer
- Plasti-kote Super Spray Paint White Gloss
- Lazertran Inkjet Waterslide Decal
- Plasti-kote ......

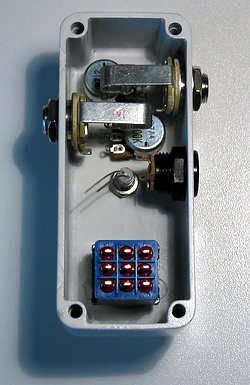

Inside the box (without the electronics).
